Radiation properties machine learning model trained on RadCal.

In this project we use the re-implementation of RadCal Grosshandler1993 [12] to generate data and train a machine learning model for the prediction of radiative properties, i.e. emissivity and transmissivity, of common combustion flue gases.

This is done because for real-time calls of RADCAL might be computationally prohibitive, for instance in CFD applications. Thus, a neural network is trained with Flux based on the simulated data and this module provides an interface to call the network from external programs (Ansys Fluent, OpenFOAM, ...).

For details of validity ranges and sample space, please check function RadCalNet.datasampler!, where random sampling is provided. Indexing of species array is documented at RadCalNet.runradcalinput.

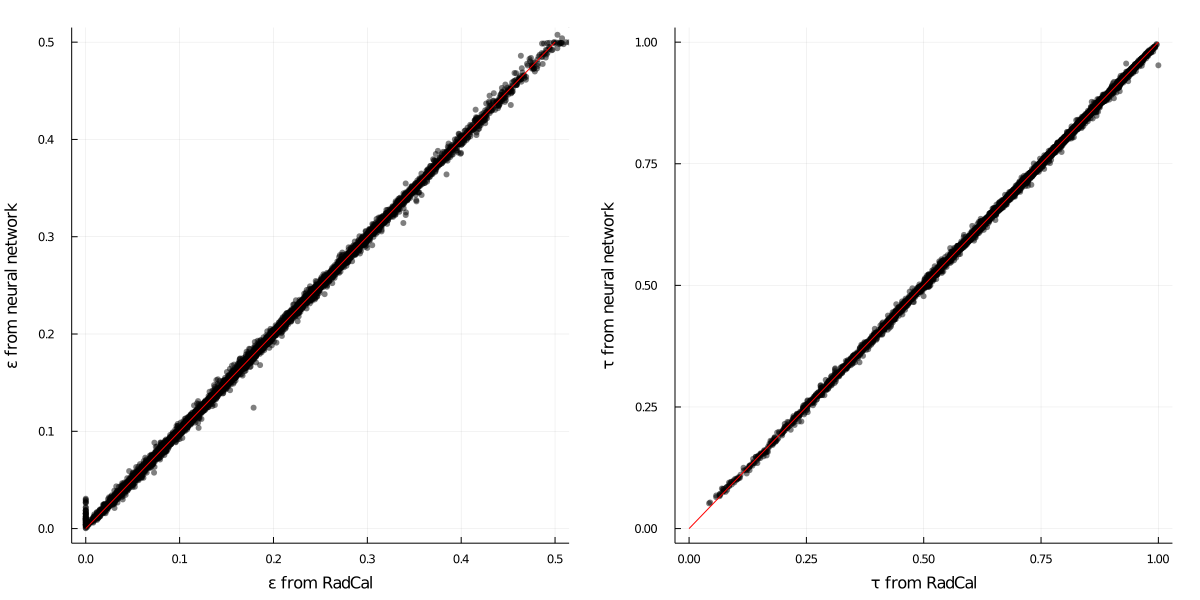

Below we display the quality of fitting of model. One must notice that fitting of emissivity still needs a few adjustments, while transmissivity is well predicted over the whole range.

Usage

The following snippet illustrates everything the model was designed to do.

julia> using RadCalNet;

julia> x = Float32[1200.0; 1000.0; 2.0; 1.0; 0.1; 0.2; 0.1];

julia> y = RadCalNet.model(x)
2-element Vector{Float32}:
 0.3231391
 0.6287435

The array of inputs x is defined below, and y provides gas emissitivy and transmissivity, respectively. Notice that x must be a column vector with entries of type Float32.

For practical applications, one generally is interested in calling the model with a large inputs set. Belowe we illustrate how to do this with a block of data and verify the predictions are within the model tolerance on average.

using WallyToolbox
using RadCalNet
using Flux: mae

# Loss after last training.
LOSS = 0.0022

# Random sample data randomly extracted (20 rows).
TESTDATA = Float32[
    1670.0   960.0  1.9  0.5  0.15  0.18  0.03   0.161774   0.820025
    1230.0   320.0  1.9  1.0  0.04  0.08  0.18   0.20205    0.79694
    1760.0   770.0  2.1  1.5  0.22  0.24  0.12   0.309017   0.669564
    1770.0   960.0  1.9  0.5  0.15  0.0   0.13   0.0721235  0.919333
     350.0  1590.0  1.9  1.0  0.06  0.29  0.12   0.357215   0.169437
    2330.0  1820.0  1.1  1.5  0.13  0.08  0.13   0.100282   0.840802
    1220.0  2070.0  0.2  0.5  0.11  0.17  0.09   0.0361672  0.902581
     760.0  1380.0  1.9  1.5  0.1   0.01  0.10   0.188531   0.69798
    1870.0  1880.0  0.2  1.5  0.14  0.28  0.17   0.0819803  0.858508
    1910.0  2220.0  1.3  1.5  0.2   0.3   0.09   0.202592   0.63856
    2290.0   360.0  1.8  0.5  0.0   0.23  0.07   0.0755366  0.914045
    1330.0   640.0  1.7  1.5  0.21  0.04  0.06   0.227428   0.764363
    1090.0  1260.0  1.9  1.5  0.17  0.18  0.18   0.381407   0.501751
    1250.0  1590.0  0.4  1.5  0.13  0.27  0.18   0.191725   0.688272
     990.0  2320.0  0.5  1.0  0.23  0.27  0.03   0.118285   0.633932
    1920.0   720.0  0.3  1.0  0.05  0.03  0.18   0.0496579  0.945693
    1250.0   310.0  0.6  1.0  0.04  0.18  0.15   0.171857   0.827273
    1990.0  1020.0  1.3  1.0  0.09  0.11  0.15   0.140596   0.837042
    1180.0  1830.0  0.3  0.5  0.09  0.29  0.02   0.0682171  0.851304
    2120.0  1230.0  2.9  1.5  0.03  0.06  0.17   0.168034   0.791942
]

# Predictors and targets transposed.
X = transpose(TESTDATA[:, 1:7])
Y = transpose(TESTDATA[:, 8:9])

mae(RadCalNet.model(X), Y) <= LOSS

# output

true

The following test can also be seen as a tutorial for data generation, where we make the verification of data generation with provided seed. See RadCalNet.createcustomdatabase for more details. An alternative RadCalNet.datasampler! can be provided for specific problems.

import Random
using WallyToolbox
using RadCalNet

function sampledatabase()
    #XXX: documentation is run from root directory!
    testname = joinpath(joinpath(@__DIR__, "src/Modules/data/RadCalNet/sample.dat"))

    # Provide a seed at start-up for *maybe* reproducible builds.
    Random.seed!(42)

    if !isfile(testname)
        RadCalNet.createcustomdatabase(;
            sampler!   = RadCalNet.datasampler!,
            repeats    = 3,
            samplesize = 3,
            cleanup    = true,
            saveas     = testname,
            override   = true
        )
    end

    return RadCalNet.loaddatabase(testname)
end

A = sampledatabase()[:, end-5:end]

# output

9×6 Matrix{Float32}:
 0.61  0.0006522    0.00680899  0.127997       1.4369f5   0.784483
 0.63  0.00147905   0.0163017   0.256072   52761.9        0.493376
 0.8   0.00181013   0.0525569   0.209679    1712.82       0.743175
 0.69  0.000962085  0.0317917   0.0917254      3.80101f5  0.88582
 0.69  0.00246231   0.0538234   0.418247    1442.63       0.479691
 0.68  0.00210072   0.00470752  0.0997078  71325.7        0.79875
 0.67  0.000770321  0.0101432   0.0812446      3.0696f5   0.815462
 0.7   0.00154008   0.0215186   0.253691   24945.7        0.478712
 0.53  0.00133843   0.0180676   0.234852   21784.6        0.7443

To-do's

• Broaden sample space over the whole RadCal composition spectrum.
• Define data loading on GPU/CPU though a flag when recovering model.
• Create database for testing outside of sampling points.
• Improve model reload and organize a notebook for training.

Literature discussion

Verification agains Gorog's paper

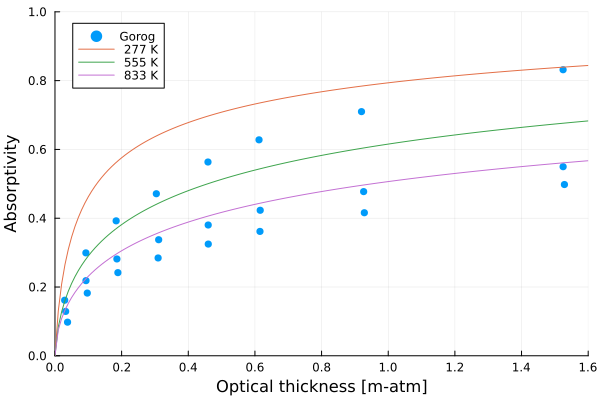

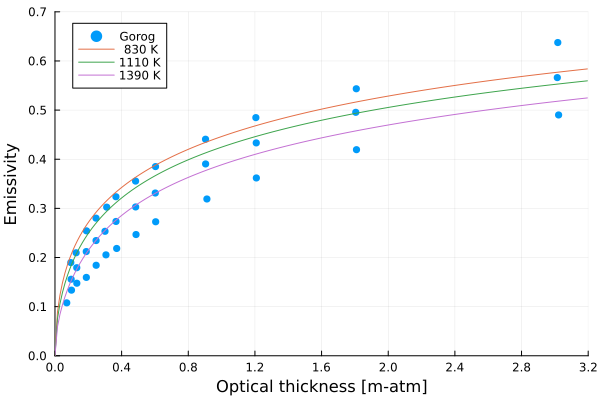

Below we compare computed values with those by Gorog1981a [13]. Reference paper is found here.

At least qualitative agreement is found and orders of magnitude are right. On the other hand, using directly the model parameters from Tam2019 [14] do not produce the expected results (not displayed, work in progress in this draft). It is not clear how the data is pre- and post-processed for use with their network.

All interfaces

ModelData(fpath::String; f_train::Float64 = 0.7)

ModelTrainer(
    data::ModelData,
    model::Chain;
    batch::Int64=64,
    epochs::Int64=100,
    η::Float64=0.001,
    β::Tuple{Float64,Float64}=(0.9, 0.999),
    ϵ::Float64=1.0e-08
)

createcustomdatabase(;
    sampler!::Function,
    repeats::Int64 = 100,
    samplesize::Int64 = 50_000,
    cleanup::Bool = false,
    saveas::String = "database.h5",
    OMMIN::Float64 = 50.0,
    OMMAX::Float64 = 10000.0,
    override::Bool = false
)

datasampler!(X::Vector{Float64})::Tuple

defaultmodel()

dumpscaler(scaler::ZScoreTransform{Float32,V32}, saveas::String)

getradcalnet(;
    scale = true,
    fscaler = nothing,
    fmstate = nothing
)

loaddatabase(fname::String)

loadscaler(fname::String)::Function

makemodel(layers::Vector{Tuple{Int64, Any}}; bn = false)::Chain

model(x::Vector{Float32})::Vector{Float32}

plottests(trainer::ModelTrainer; num::Int64)

runradcalinput(;
    X::Dict{String, Float64} = Dict{String, Float64}(),
    T::Float64 = 300.0,
    L::Float64 = 1.0,
    P::Float64 = 1.0,
    FV::Float64 = 0.0,
    OMMIN::Float64 = 50.0,
    OMMAX::Float64 = 10000.0,
    TWALL::Float64 = 500.0,
    radcalexe::String = "radcal_win_64.exe"
)::Vector{Float64}

trainonce!(trainer::ModelTrainer; num = 1_000)
