15  Plotting

aka majordome_utilities.plotting

15.1 MajordomePlot

One might ask why a wrapper around Matplotlib’s Figure and Axes is necessary, and I would strongly agree that it isn’t. However, keeping all the plots in a report consistent is a huge effort, and being able to standardize the plots without having to write new themes is a nice feature. That’s the main goal of MajordomePlot: simplifying the plotting of publication-quality figures across Majordome (and beyond!). Below we illustrate how to use this functionality to ensure all the plots in a project look the same.

NoteMajordomePlot
MajordomePlot(
    shape : tuple[int, int] = (1, 1),
    style : str = 'classic',
    *,
    size : tuple[float, float] | None = None,
    xlabel : str | list[str] | None = None,
    ylabel : str | list[str] | None = None,
    opts : dict[str, typing.Any] = {'facecolor': 'white'}
    ) -> None:

Handles the creation and management of plots.

Provides a handle for creating and managing plots using Matplotlib. It is aimed at standardizing the plot creation process across the Majordome framework.

Parameters
shape : tuple[int, int] = (1, 1)

Shape of the plot as (n_rows, n_cols).
style : str = 'classic'

Matplotlib style to use for the plot.
size : tuple[float, float] | None = None

Size of the plot in inches as (width, height). If None, the default size will be used.
xlabel : str | list[str] | None = None

Label(s) for the x-axis. If a list is provided, each subplot will get its own label.
ylabel : str | list[str] | None = None

Label(s) for the y-axis. If a list is provided, each subplot will get its own label.
opts : dict[str, typing.Any] = {'facecolor': 'white'}

Additional options to pass to plt.subplots().

Let’s see how one would expect to use it from the above constructor signature. This is in fact almost the same as calling plt.subplots(), and that is what the constructor does under the hood. This is a negative example actually, the author has never used the constructor directly, but instead uses the new classmethod, which is a much more convenient way to create a plot. More on that later.

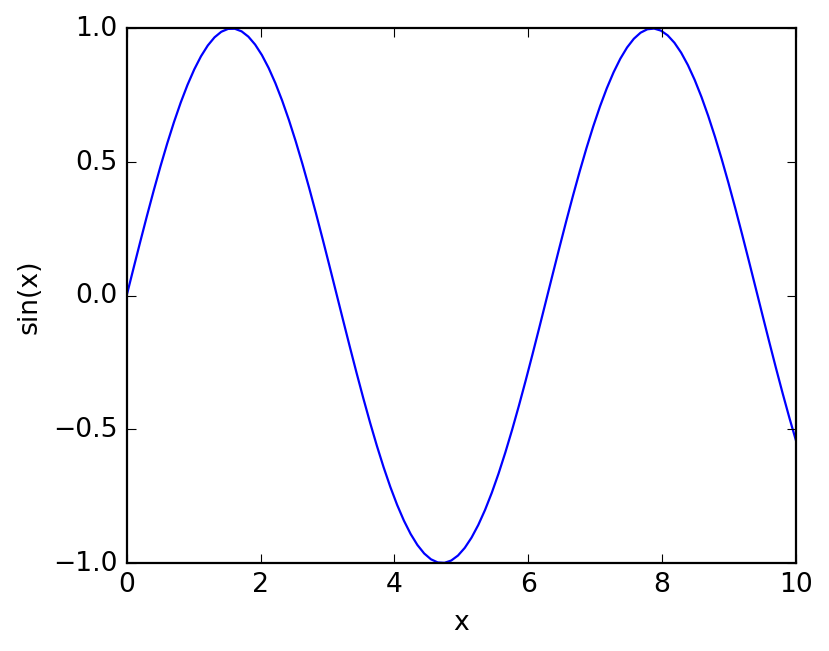

x = np.linspace(0, 10, 100)
mp = MajordomePlot(shape=(1, 1), size=(5, 4))
mp.axes[0].plot(x, np.sin(x))
mp.axes[0].set_xlabel("x")
mp.axes[0].set_ylabel("sin(x)")
pass

The story behind this class dates a few years back, when I was learning about Python decorators. As an exercise, I coded what later became the new classmethod, which is a decorator that creates a new MajordomePlot and passes it to the decorated function. This is a very convenient way to create plots, as it allows you to focus on the plotting code and not worry about the boilerplate of creating the plot and setting the labels.

Notenew
new(
    cls : Any,
    _func : typing.Optional[typing.Callable[~Params, typing.Any]] = None,
    *,
    shape : tuple[int, int] = (1, 1),
    style : str = 'classic',
    sharex : bool = True,
    facecolor : str = 'white',
    grid : bool = True,
    size : tuple[float, float] | None = None,
    xlabel : str | list[str] | None = None,
    ylabel : str | list[str] | None = None
    ) -> typing.Callable[[typing.Callable[~Params, typing.Any]], typing.Any]:

Wraps a function for ensuring a standardized plot.

Parameters
_func : typing.Optional[typing.Callable[~Params, typing.Any]] = None

Function to wrap, if any.
shape : tuple[int, int] = (1, 1)

Shape of the plot as (n_rows, n_cols).
style : str = 'classic'

Matplotlib style to use for the plot. By default “classic”.
sharex : bool = True

Whether to share x-axis among subplots.
facecolor : str = 'white'

Face color of the figure.
grid : bool = True

Whether to display grid lines.
size : tuple[float, float] | None = None

Size of the plot in inches as (width, height). If None, the default size will be used. By default None.
xlabel : str | list[str] | None = None

Label(s) for the x-axis. If a list is provided, each subplot will get its own label. By default None.
ylabel : str | list[str] | None = None

Label(s) for the y-axis. If a list is provided, each subplot will get its own label. By default None.

In the following example, we make use of this decorator to parametrize the labels of the plot. Internally, we must expect a keyword-only argument plot, which is the MajordomePlot instance created by the decorator, from which we can access the Figure and Axes objects as usual. The rest of the code is just standard Matplotlib code, with the exeption that the axes is raveled, so we can access it with ax[0] instead of ax[0, 0]. Returning plot is optional (it is done by the decorator already), but it avoids linting errors if you want to annotate the return type as MajordomePlot.

Here we create a function that will be used below in the examples. In summary, to get it working, you need to:

  • Use decorator @MajordomePlot.new with all its configurable attributes; for details, please refer to its API documentation.

  • Have a function with signature func(*args, plot=None, **kwargs) -> None, where it is recommended (for linter) to provide explictly keyword plot=None.

  • Unpack fig, ax = plot.subplots() or just _, ax = plot.subplots(), as needed, inside the figure; these contain standard matplotlib figure and axes.

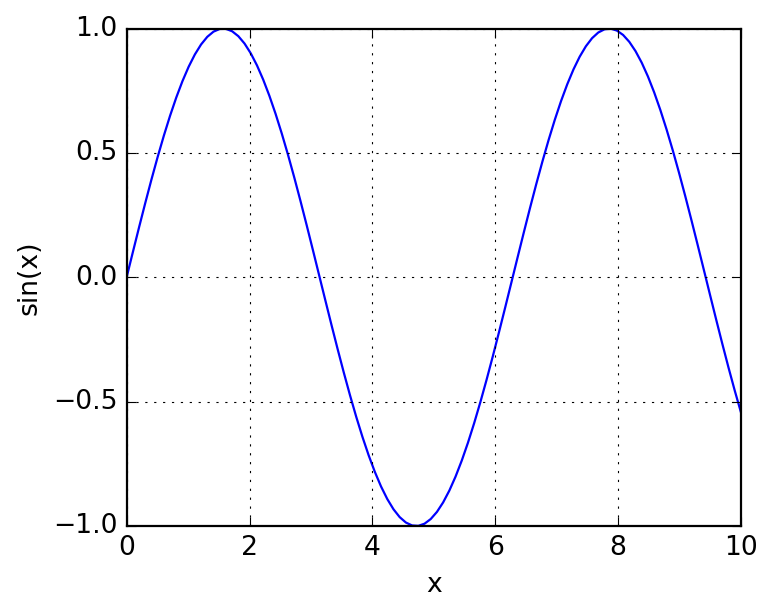

@MajordomePlot.new(size=(5, 4), xlabel="x", ylabel="sin(x)")
def plot_sin(x, *, plot, **kwargs) -> MajordomePlot:
    _, ax = plot.subplots()
    ax[0].plot(x, np.sin(x))
    return plot

plot = plot_sin(np.linspace(0, 10, 100))

The following elements document the members and properties of the class.

Noteresize
resize(
    self : Any,
    w : float,
    h : float
    ) -> None:

Resize a plot with width and height in inches.

Parameters
w : float

Width of the plot in inches.
h : float

Height of the plot in inches.
Notesavefig
savefig(
    self : Any,
    filename : str | pathlib.Path,
    **kwargs : Any
    ) -> None:

Wrapper for saving a figure to file.

Parameters
filename : str | pathlib.Path

Path to save the figure to.
kwargs : None = None

Additional keyword arguments to pass to Figure.savefig().
Notesubplots
subplots(self : Any): -> tuple[matplotlib.figure.Figure, list[matplotlib.axes._axes.Axes]]:

Provides access to underlying figure and axes.

Noteshow
show(self : Any): -> None:

Display the plot.

Notefigure
figure(self : Any): -> Figure:

Provides access to underlying figure.

Noteaxes
axes(self : Any): -> list[matplotlib.axes._axes.Axes]:

Provides access to underlying axes.

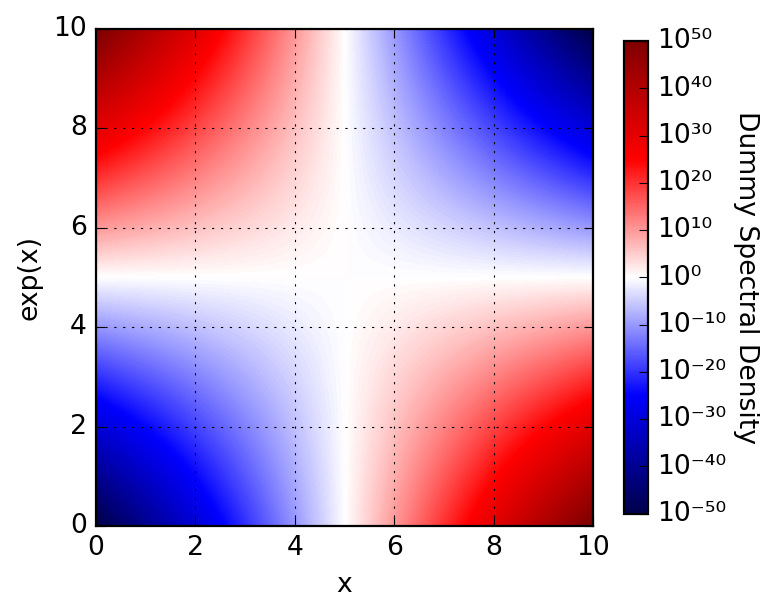

15.2 PowerFormatter

NotePowerFormatter
PowerFormatter(**kwargs : Any): -> None:

Formatter for power of ten in numerical axes.

Parameters
values : str = None

String of characters to be replaced by their superscript counterparts. By default “0123456789-”.
supers : str = None

String of superscript characters corresponding to values. By default “⁰¹²³⁴⁵⁶⁷⁸⁹⁻”.

15.3 General utilities

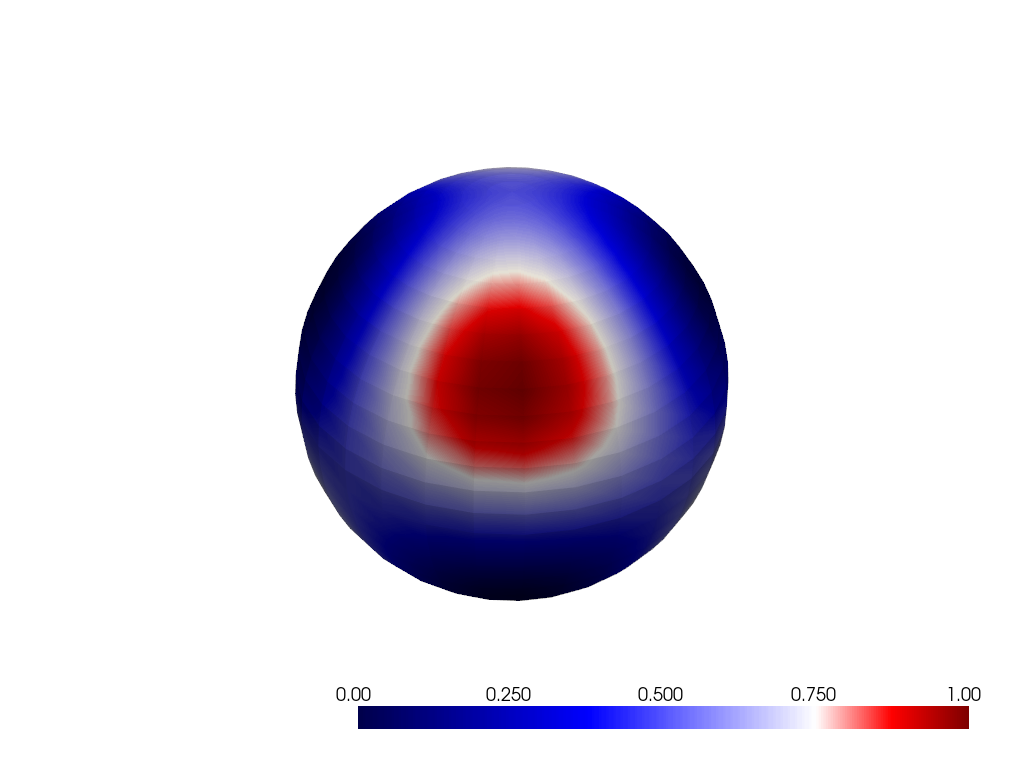

Notecentered_colormap
centered_colormap(
    name : str,
    vmin : float,
    vmax : float,
    vcenter : float = 0.0
    ) -> LookupTable:

Ensure the center of a colormap is at zero.

Parameters
name : str

Name of the colormap to use.
vmin : float

Minimum value of the data range.
vmax : float

Maximum value of the data range.
vcenter : float = 0.0

Center value of the colormap, by default 0.
