import yaml8 Converting Shomate data
The goal of this tutorial is to illustrate how to transform other thermodynamic data formats (here the closely related Maier-Kelly) into Shomate formalist for use with Cantera. This is especially useful for composing larger databases with standardized properties.
We start by importing the required tools:
8.1 Species data
The following provides a compilation of data from Schieltz (1964); please notice that at the time of publication customary units where \(\text{cal}\,\text{mol}^{-1}\), so when loading data we will need to multipy data by \(4.184\:\text{J}\,\text{cal}^{-1}\).
data = """\
- name: KAOLINITE
composition: {Al: 2, Si: 2, O : 9, H : 4}
data: [57.47, 35.30e-03, -7.87e+05, -964940.0, 40.50]
- name: METAKAOLIN
composition: {Al: 2, Si: 2, O: 7}
data: [54.85, 8.80e-03, -3.48e+05, -767500.0, 32.78]
- name: AL6SI2O13_MULLITE
composition: {Al: 6, Si: 2, O: 13}
data: [84.22, 20.00e-03, -25.00e+05, -1804000.0, 60.00]
- name: AL2O3_GAMMA
composition: {Al: 2, O: 3}
data: [16.37, 11.10e-03, 0.0, -395000.0, 12.20]
- name: SIO2_QUARTZ_ALPHA
composition: {Si: 1, O: 2}
data: [11.22, 8.20e-03, -2.70e+05, -209900.0, 10.06]
- name: SIO2_QUARTZ_BETA
composition: {Si: 1, O: 2}
data: [14.41, 1.94e-03, 0.0, -209900.0, 10.06]
- name: SIO2_GLASS
composition: {Si: 1, O: 2}
data: [13.38, 3.68e-03, -3.45e+05, -202000.0, 10.06]
- name: SIO2_CRISTOBALITE_ALPHA
composition: {Si: 1, O: 2}
data: [4.28, 21.06e-03, 0.0, -209500.0, 10.06]
- name: SIO2_CRISTOBALITE_BETA
composition: {Si: 1, O: 2}
data: [14.40, 2.04e-03, 0.0, -209500.0, 10.06]
- name: SIO2_TRIDYMITE_ALPHA
composition: {Si: 1, O: 2}
data: [3.27, 24.80e-03, 0.0, -209400.0, 10.06]
- name: SIO2_TRIDYMITE_BETA
composition: {Si: 1, O: 2}
data: [13.64, 2.64e-03, 0.0, -209400.0, 10.06]
- name: H2O_LIQUID
composition: {H: 2, O: 1}
data: [18.03, 0.0, 0.0, -68320.0, 16.72]
- name: H2O_STEAM
composition: {H: 2, O: 1}
data: [7.17, 2.56e-03, 0.08e+05, -57800.0, 45.13]
"""8.2 NIST validation data
Data sources:
nist_water = """\
500.0 35.22 206.5 192.7 6.92
600.0 36.32 213.1 195.5 10.50
700.0 37.50 218.7 198.5 14.19
800.0 38.74 223.8 201.3 18.00
900.0 40.00 228.5 204.1 21.94
1000.0 41.27 232.7 206.7 26.00
"""nist_mullite = """\
298.0 325.0 274.1 275.1 -0.30
300.0 326.9 276.3 275.1 0.35
400.0 392.6 380.3 288.6 36.66
500.0 431.8 472.4 316.4 78.02
600.0 458.8 553.7 349.3 122.6
700.0 478.5 625.9 383.7 169.5
800.0 493.5 690.9 418.1 218.2
900.0 505.1 749.7 451.8 268.1
1000.0 514.0 803.4 484.3 319.1
1100.0 521.0 852.7 515.6 370.9
1200.0 526.6 898.3 545.6 423.2
1300.0 531.2 940.6 574.4 476.1
1400.0 535.3 980.1 601.9 529.5
1500.0 539.4 1017.0 628.4 583.2
1600.0 543.8 1052.0 653.8 637.4
1700.0 548.9 1085.0 678.2 692.0
1700.0 547.7 1085.0 678.1 692.0
1800.0 551.3 1117.0 701.6 747.0
1900.0 554.6 1147.0 724.3 802.3
2000.0 557.9 1175.0 746.1 857.9
2100.0 561.1 1202.0 767.2 913.8
2200.0 564.4 1229.0 787.6 970.1
2300.0 567.7 1254.0 807.3 1027.0
2400.0 571.1 1278.0 826.4 1084.0
2500.0 574.6 1301.0 844.9 1141.0
2600.0 578.3 1324.0 862.9 1199.0
2700.0 582.0 1346.0 880.4 1257.0
2800.0 585.9 1367.0 897.4 1315.0
2900.0 589.9 1388.0 914.0 1374.0
3000.0 593.9 1408.0 930.1 1433.0
"""nist_quartz = """\
298.0 44.57 41.44 41.47 -0.01
300.0 44.77 41.74 41.47 0.08
400.0 53.43 55.87 43.34 5.01
500.0 59.64 68.50 47.13 10.68
600.0 64.42 79.81 51.65 16.89
700.0 68.77 90.06 56.42 23.55
800.0 73.70 99.56 61.22 30.67
847.0 67.42 104.7 63.47 34.93
900.0 67.95 108.8 66.02 38.51
1000.0 68.95 116.0 70.66 45.36
1100.0 69.96 122.6 75.09 52.30
1200.0 70.96 128.8 79.31 59.35
1300.0 71.96 134.5 83.34 66.50
1400.0 72.97 139.9 87.18 73.74
1500.0 73.97 144.9 90.87 81.09
1600.0 74.98 149.7 94.40 88.54
1700.0 75.98 154.3 97.79 96.08
1800.0 76.99 158.7 101.0 103.7
1900.0 77.99 162.9 104.2 111.5
"""8.3 Data model
class SchieltzSpecies:
""" Simple species representation to load data from Schieltz, 1964. """
__slots__ = ("_name", "_mass", "_coef", "_h298", "_s298")
def __init__(self, data: dict, Tref: float = 298.15) -> None:
self._name = data["name"]
self._mass = self.molecular_weight(data["composition"])
# Store coefficients in J/mol units:
self._coef = 4.184 * np.array(data["data"])
# Store reference state quantities for integrations:
self._h298 = self._h(Tref)
self._s298 = self._s(Tref)
def __repr__(self) -> str:
""" Unique representation of species. """
return f"<Species {self._name}>"
@staticmethod
def molecular_weight(composition: dict[str, int]) -> float:
""" Evaluate molecular weight of species [kg/kmol]. """
return sum(n * ct.Element(e).weight for e, n in composition.items())
def _c(self, T: float) -> float:
""" Evaluation by definition (from coefficients). """
a, b, c = self._coef[:3]
return a + b * T + c / T**2
def _h(self, T: float) -> float:
""" Evaluation by definition (dH = dT*c_p*). """
a, b, c = self._coef[:3]
return a * T + (b / 2) * T**2 - c / T
def _s(self, T: float) -> float:
""" Evaluation by definition (dS = dT*c_p/T. """
a, b, c = self._coef[:3]
return a * np.log(T) + b * T - c / (2 * T**2)
def specific_heat(self, T: float) -> float:
""" Maier-Kelley specific heat [J/(mol.K)]. """
return self._c(T)
def specific_enthalpy(self, T: float) -> float:
""" Maier-Kelley specific enthalpy [J/mol]. """
return self._h(T) - self._h298
def specific_entropy(self, T: float) -> float:
""" Maier-Kelley specific entropy [J/(mol.K)]. """
return self.reference_specific_entropy + self._s(T) - self._s298
@property
def reference_specific_enthalpy(self) -> float:
""" Reference state formation enthalpy [J/mol]. """
return self._coef[-2]
@property
def reference_specific_entropy(self) -> float:
""" Reference state formation entropy [J/(mol.K)]. """
return self._coef[-1]
def tabulate(self, T: NDArray[np.float64]) -> pd.DataFrame:
""" Generate a table for comparison with NIST Web-book of Chemistry. """
c = self.specific_heat(T)
s = self.specific_entropy(T)
h = self.specific_enthalpy(T)
g = -(h - T * s) / T
data = np.vstack((T, c, s, g, h / 1000)).T
columns = pd.MultiIndex.from_tuples([
("T", "K"),
("Cp", "J/(mol.K)"),
("S°", "J/(mol.K)"),
("-(G°-H°298.15)/T", "J/(mol.K)"),
("H°-H°298.15", "kJ/mol")
])
return pd.DataFrame(data, columns=columns)class CanteraSpecies:
""" Simple wrapper to compute vectorized properties of species. """
__slots__ = ("_species", "_c", "_h", "_s", "_trng")
def __init__(self, species: ct.thermo.Species) -> None:
self._species = species
h298 = species.thermo.h(298.15) / 1000
# s298 = species.thermo.s(298.15) / 1000
# XXX: notice that properties are in *kmol* basis in Cantera
# https://cantera.org/stable/python/thermo.html#cantera.SpeciesThermo
self._c = np.vectorize(lambda t: 0.001 * species.thermo.cp(t))
self._h = np.vectorize(lambda t: 0.001 * species.thermo.h(t) - h298)
self._s = np.vectorize(lambda t: 0.001 * species.thermo.s(t))
self._trng = species.input_data["thermo"]["temperature-ranges"]
def __repr__(self) -> str:
""" Unique representation of species. """
return repr(self._species)
def specific_heat(self, T: float) -> float:
""" Cantera species specific heat [J/(mol.K)]. """
return self._c(T)
def specific_enthalpy(self, T: float) -> float:
""" Cantera species specific enthalpy [J/mol]. """
return self._h(T)
def specific_entropy(self, T: float) -> float:
""" Cantera species specific entropy [J/(mol.K)]. """
return self._s(T)
@property
def temperature_ranges(self) -> list[float]:
""" Temperature ranges for data set [K]. """
return self._trngconfig_plot = {
"shape": (2, 2),
"size": (12, 8),
"xlabel": "Temperature [K]",
"ylabel": [
r"$c_p$",
r"$s^\circ$",
r"-$(G^\circ-H^\circ)/T$",
r"$H-H^\circ$"
]
}
@MajordomePlot.new(**config_plot)
def plot_properties(spec_ref, truth, df, plot=None):
data = df.iloc[:, :].to_numpy().T
_, ax = plot.subplots()
T = data[0]
c = spec_ref.specific_heat(T)
h = spec_ref.specific_enthalpy(T)
s = spec_ref.specific_entropy(T)
# h is already h-h298!
g = -(h - T * s) / T
T_nist = truth[0]
c_nist = truth[1]
s_nist = truth[2]
g_nist = truth[3]
h_nist = truth[4]
ax[0].plot(T, data[1], label="Schieltz (1964)")
ax[0].plot(T, c, label="Cantera")
ax[0].scatter(T_nist, c_nist, s=5, c="r", label="NIST")
ax[1].plot(T, data[2], label="Schieltz (1964)")
ax[1].plot(T, s, label="Cantera")
ax[1].scatter(T_nist, s_nist, s=5, c="r", label="NIST")
ax[2].plot(T, data[3], label="Schieltz (1964)")
ax[2].plot(T, g, label="Cantera")
ax[2].scatter(T_nist, g_nist, s=5, c="r", label="NIST")
ax[3].plot(T, data[4], label="Schieltz (1964)")
ax[3].plot(T, h / 1000, label="Cantera")
ax[3].scatter(T_nist, h_nist, s=5, c="r", label="NIST")
ax[0].legend(loc=4)
ax[1].legend(loc=4)
ax[2].legend(loc=4)
ax[3].legend(loc=4)
ax[0].set_xlim(mj.bounds(T))Below we load both databases in a format convenient for the computations that follow:
database = {d["name"]: SchieltzSpecies(d) for d in yaml.safe_load(data)}
species = {s.name: CanteraSpecies(s) for s in ct.Species.list_from_file("materials.yaml", "species")}
# database, species8.4 Validation of calculator
8.4.1 Water gas
spec_ref = species["H2O_GAS"]
T_mullite = np.linspace(298, 1000, 100)
df_calc = database["H2O_STEAM"].tabulate(T_mullite)
df_nist = pd.read_csv(StringIO(nist_water), sep=r"\s+", header=None)
plot = plot_properties(spec_ref, df_nist, df_calc)
8.4.2 Mullite
spec_ref = species["AL6SI2O13_MULLITE"]
T_mullite = np.linspace(*mj.bounds(spec_ref.temperature_ranges), 100)
df_calc = database["AL6SI2O13_MULLITE"].tabulate(T_mullite)
df_nist = pd.read_csv(StringIO(nist_mullite), sep=r"\s+", header=None)
plot = plot_properties(spec_ref, df_nist, df_calc)

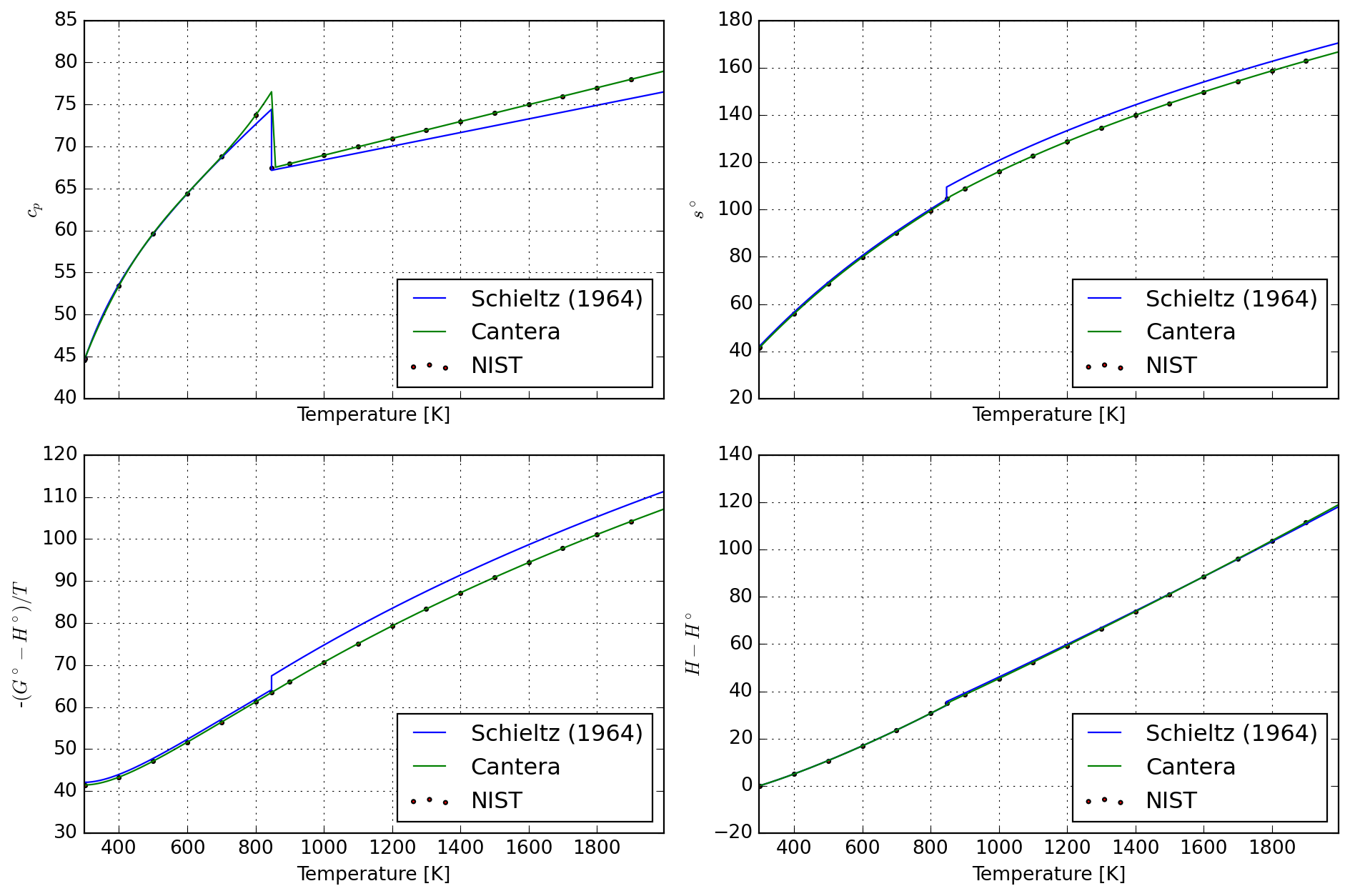

8.4.3 Quartz
def tabulate_sio2(T_ranges):
""" Compose a single table with data for SiO2 (Quartz). """
sio2_alpha = database["SIO2_QUARTZ_ALPHA"]
sio2_beta = database["SIO2_QUARTZ_BETA"]
# XXX: in Shomate formalism, ranges as [Tmin; Tmax), so use
# a slightly smaller value for jump temperature in T_alpha.
T_alpha = np.linspace(298, T_ranges[1]-0.001, 100)
T_beta = np.linspace(*T_ranges[1:], 100)
df_alpha = sio2_alpha.tabulate(T_alpha)
df_beta = sio2_beta.tabulate(T_beta)
return pd.concat([df_alpha, df_beta])spec_ref = species["SIO2_QUARTZ"]
df_calc = tabulate_sio2(spec_ref.temperature_ranges)
df_nist = pd.read_csv(StringIO(nist_quartz), sep=r"\s+", header=None)
plot = plot_properties(spec_ref, df_nist, df_calc)
8.5 Converting to Shomate formalism
# WIP
